Hladina akustického výkonu | Oktávové frekvenční pásmo [Hz] |
---|
| Hz | Celkem | 63 | 125 | 250 | 500 | 1000 | 2000 | 4000 | 8000 |
LwA pro vstup | dBA | 67 | 33 | 48 | 57 | 65 | 62 | 58 | 56 | 53 |
LwA pro výstup | dBA | 71 | 40 | 55 | 58 | 67 | 65 | 63 | 56 | 55 |
LwA pro prostředí | dBA | 57 | 32 | 46 | 53 | 47 | 41 | 46 | 50 | 47 |
n, [%] | MC | EC | N | VSD | [kW] | [A] | [m3/h] | [Pa] | [ot/min] | SR |
---|
60,9 | A | Statický | 79,8 | ano | 0,16 | 0,94 | 815 | 369 | 2600 | 1 |

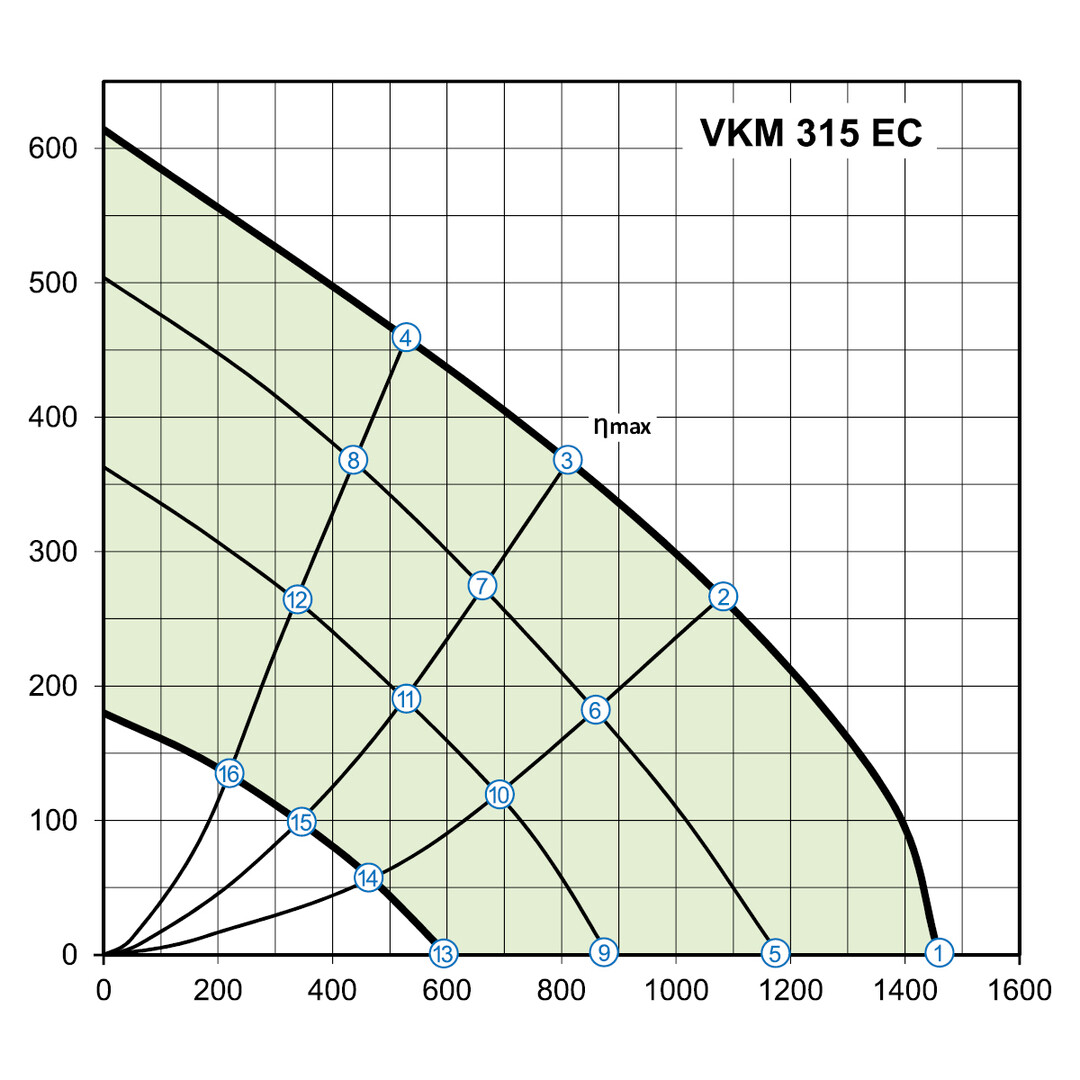

bod | 1 | 2 | 3 | 4 | 5 | 6 | 7 | 8 | 9 | 10 | 11 | 12 | 13 | 14 | 15 | 16 |
---|
n, (min-1) | 2750 | 2660 | 2600 | 2670 | 2450 | 2370 | 2330 | 2390 | 1990 | 1950 | 1930 | 1955 | 1370 | 1350 | 1340 | 1350 |
n, (min-1) | 3260 | 3190 | 3130 | 3170 | 2610 | 2560 | 2500 | 2530 | 1960 | 1910 | 1880 | 1890 | 1310 | 1280 | 1250 | 1280 |
R, (W) | 121 | 145 | 160 | 145 | 85 | 103 | 112 | 101 | 49 | 61 | 65 | 60 | 21 | 22 | 25 | 24 |
