Hladina akustického výkonu | Oktávové frekvenční pásmo [Hz] |
---|
| Hz | Celkem | 63 | 125 | 250 | 500 | 1000 | 2000 | 4000 | 8000 |
LwA pro vstup | dBA | 71 | 57 | 64 | 61 | 63 | 62 | 57 | 50 | 45 |
LwA pro výstup | dBA | 73 | 58 | 67 | 70 | 66 | 67 | 65 | 56 | 47 |
LwA pro prostředí | dBA | 61 | 54 | 58 | 57 | 47 | 40 | 35 | 42 | 36 |
n, [%] | MC | EC | N | VSD | [kW] | [A] | [m3/h] | [Pa] | [ot/min] | SR |
---|
48,1 | A | Statický | 67 | ano | 0,161 | 0,94 | 708 | 338 | 2610 | 1 |

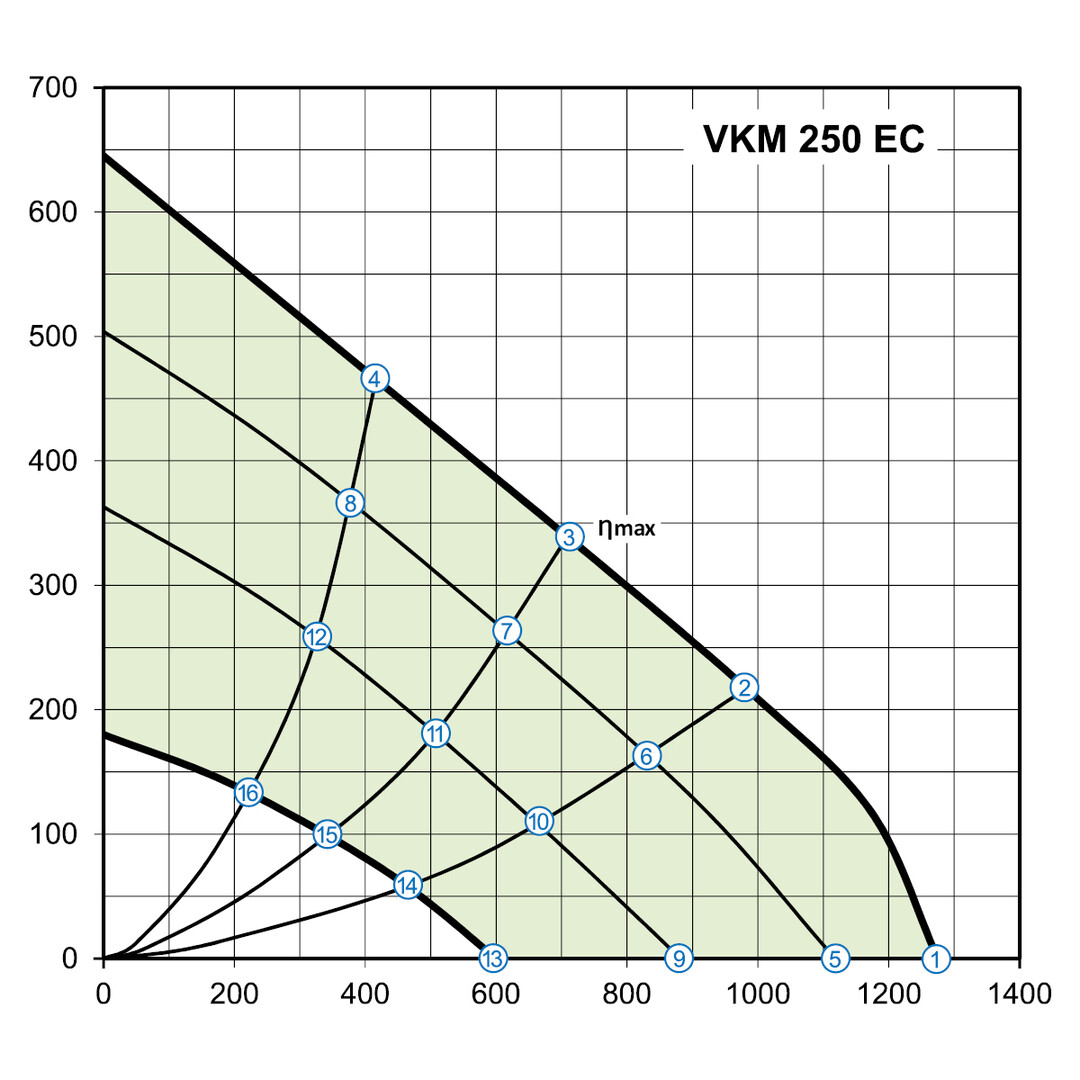

bod | 1 | 2 | 3 | 4 | 5 | 6 | 7 | 8 | 9 | 10 | 11 | 12 | 13 | 14 | 15 | 16 |
---|
n, (min-1) | 2760 | 2670 | 2610 | 2680 | 2460 | 2380 | 2340 | 2400 | 2000 | 1960 | 1940 | 1965 | 1380 | 1360 | 1350 | 1360 |
n, (min-1) | 3260 | 3190 | 3130 | 3170 | 2610 | 2560 | 2500 | 2530 | 1960 | 1910 | 1880 | 1890 | 1310 | 1280 | 1250 | 1280 |
R, (W) | 123 | 146 | 161 | 146 | 88 | 106 | 116 | 105 | 53 | 62 | 69 | 61 | 22 | 25 | 28 | 25 |
